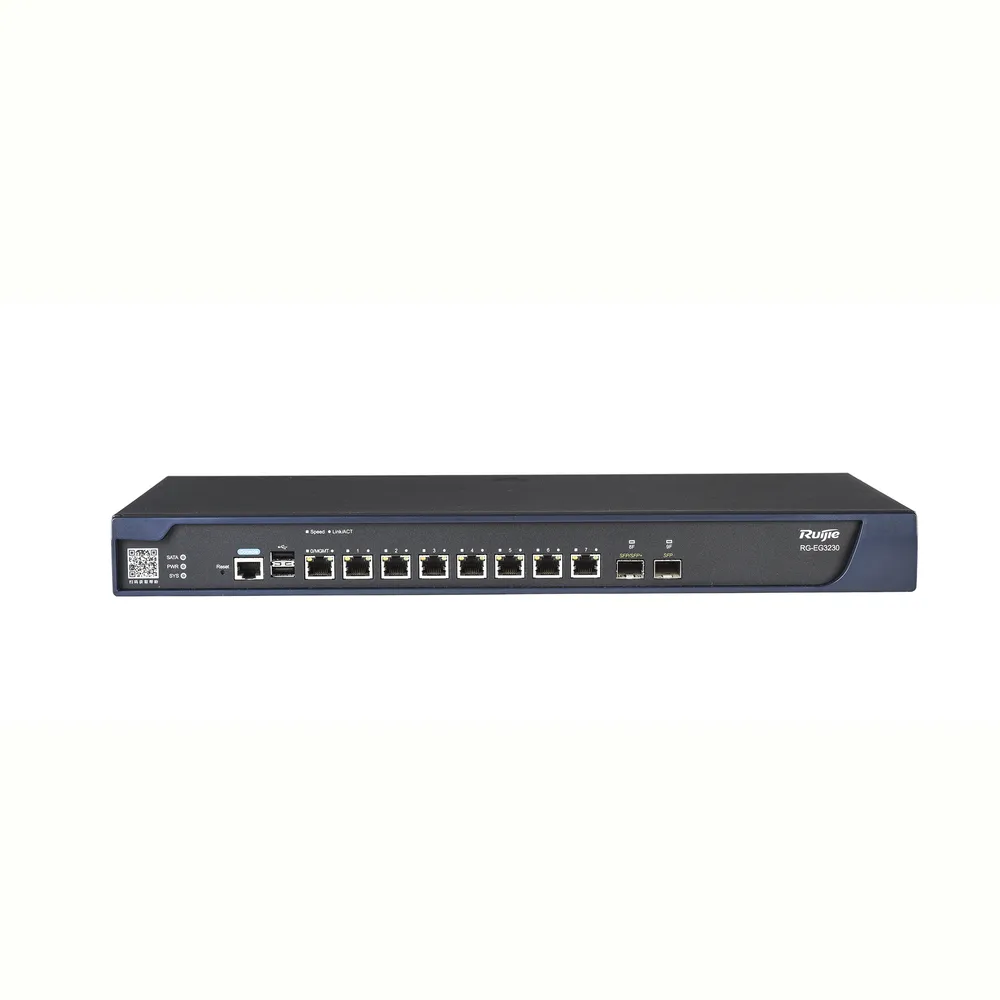

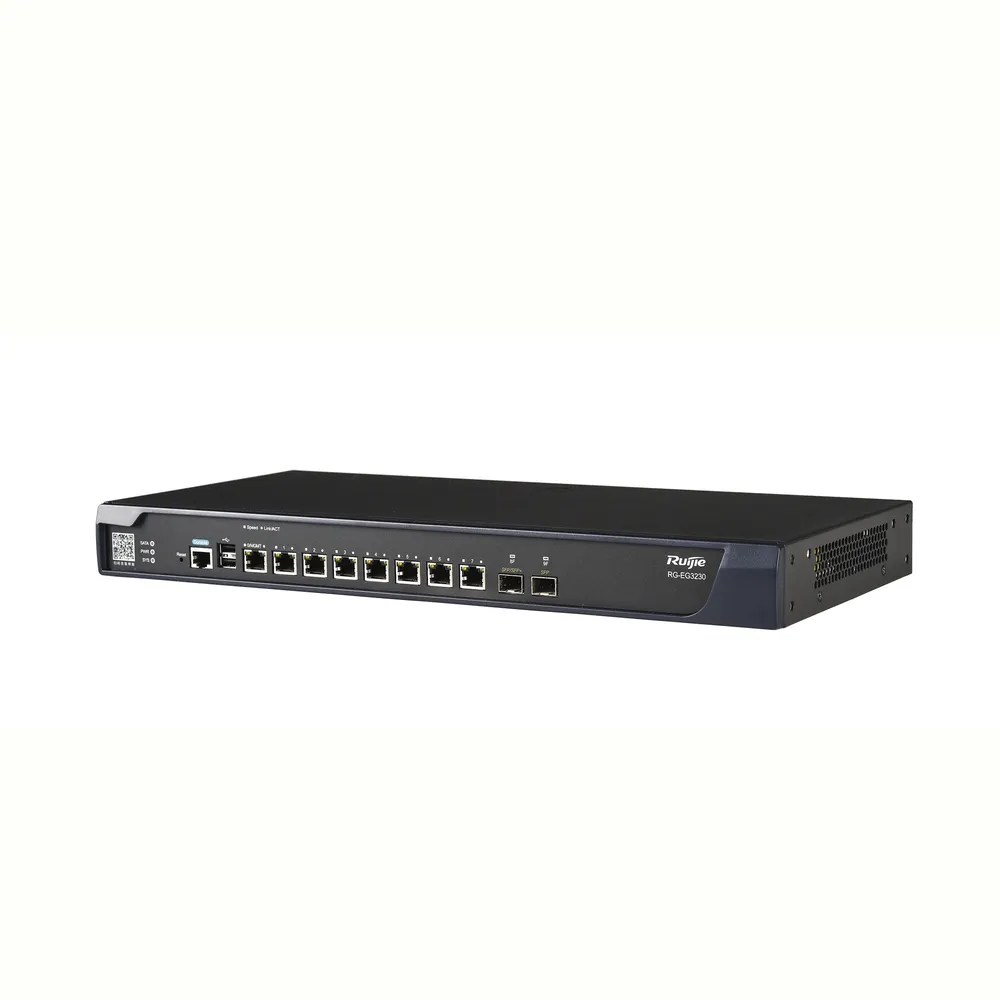

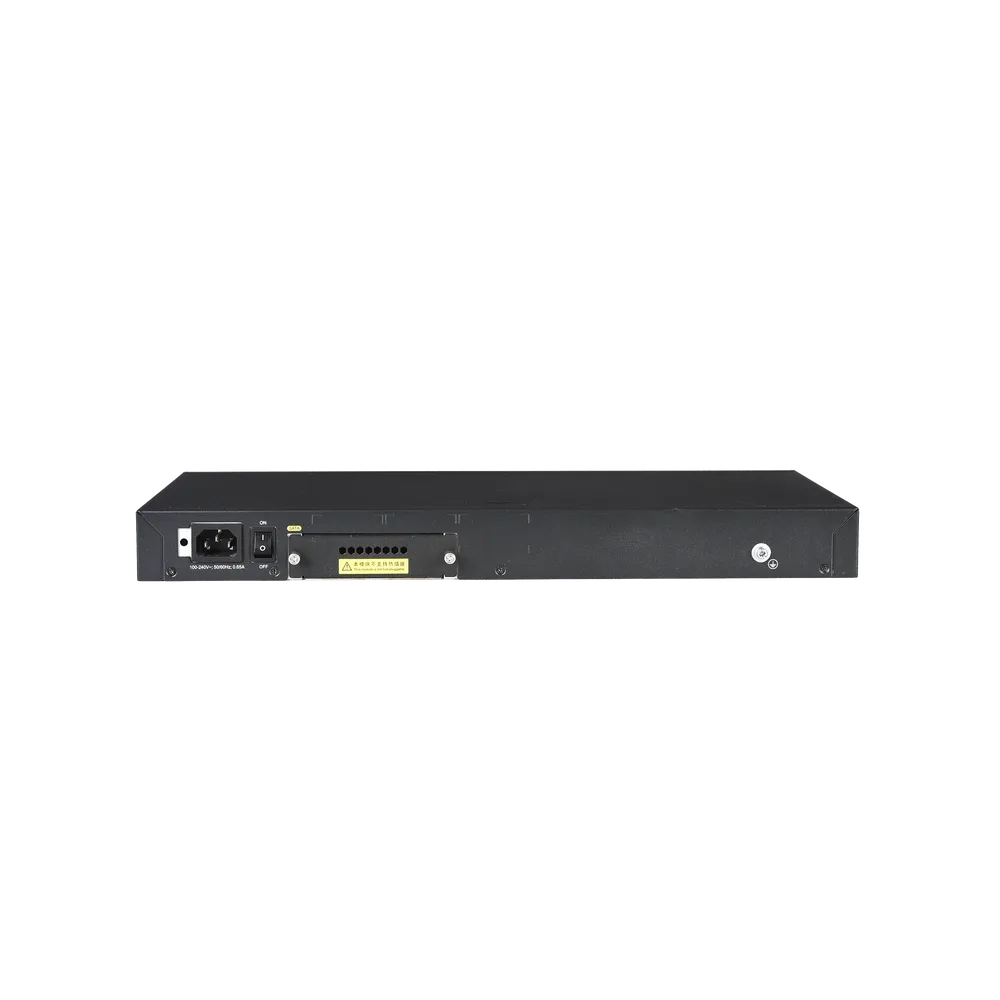

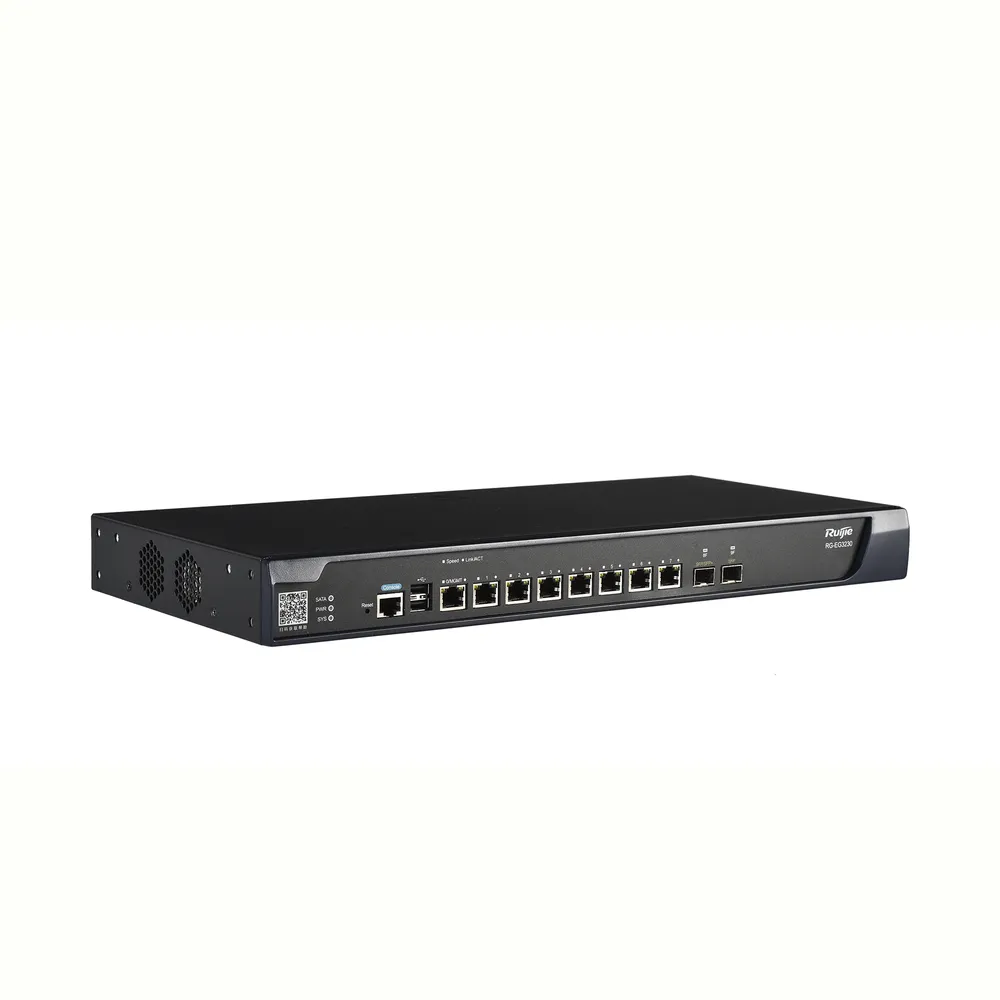

Router Gateway Corporativo Ruijie RG-EG3230
Router Gateway Ruijie RG-EG3230
Con el Router Gateway de Ruijie, no solo podrás administrar de manera más eficiente tu red, sino que podrás agregar niveles superiores de protección como es el caso de bloqueo de páginas web, aplicaciones, balanceos de carga, análisis de tráfico, Configuración de VPN (Red Privada Virtual), separación de VLAN, Servidor DHCP, Portal Cautivo configurable, entre otras multiples opciones que nos ofrece el dispositivo.
| Model | RG-EG3230 |
Hardware Specification | |
CPU | Multi-core MIPS |
Fixed Ports | 8 1000BASE-T ports 1 SFP port 1 SFP+ port (non-combo) |
WAN Ports | Upto 6 |
Flash | 8M SPIFLASH |
Hard Disk | Standard 1TB |
Memory | 2G |
Performance & Feature | |
Performance | 4000Mbps (1518 bytes) |
2610Mbps (512bytes) | |
622Mbps (64 bytes) | |
Concurrent Session | 300,000 |
Recommended Concurrent User | 1000 |
Portal Authentication Capacity | 1000 (Max Concurrent Users) |
Portal Authentication Type | Username/Password Auth (Local, Windows-based AD/LDAP Integration) One-click Authentication; Guest Voucher (Ruijie Cloud required); |
Seamless Authentication (Portal) | Support |
App Caching | Support |
Cache Resources | Windows System Patches |
Network Protocol | Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc. Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF Support DHCP Relay and DHCP Server Support PPPoE Client Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc. Support ARP, trusted ARP, proxy ARP, etc. Support Ping and Traceroute fault detection |
Application Visibility | Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification: P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc. Multimedia: YouTube, Facebook Video, WebEx Conference & etc. Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc. VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc. Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc. Software Update: Window, McAfee, Kaspersky, ESET & etc. Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc. Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc. |
URL Filtering | Support HTTP/HTTPS domain filtering Support remote HTTP automatic URL library upgrade Local log storage (NAT log, traffic log, URL log, etc.) Support storage on external log server |
WAN Load Balancing | Support (upto 6 WAN Port) |
High Availability | VRRP RIP (Graceful Restart) OSPF (Graceful Restart) |
IPsec VPN Tunnel | 600 |
Network Security | Anti-ARP Spoofing Defense against malicious attacks from internal and external networks Support secure address binding Block WAN Ping Prevent Port Scan Attack Prevent Fragmentation Attack Prevent ICMP Flood Attack Prevent Teardrop Attack Prevent Ping of Death Attack Prevent Land Attack Prevent Smurf / Fraggle attack Prevent SYN Flood Attack |
Layer 2 Features | Support Bridging Support LAN Port Aggregation |
Ruijie Cloud Integration Feature | Support device health monitoring status Support centralized configuration change management & backup Support Top 10 Application/User traffic visualization Support device firmware management Support event-based alarm notification |
Other Features | Integrate with AAA software to support multiple authentication modes |
Other Features Service and Support | Support push advertising page |
Support multi-link load balancing | |
Support remote HTTP online upgrade for signature library, software version, etc. | |
Lifetime Free signature library upgrade | |
Rack Height | 1U |
Weight | 4kg |
Power Supply | 100-240V~,50-60Hz,0.65A |
Power Consumption | <25W |
Dimensions (W x D x H) (mm) | 440×200×43.6 |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 10% to 90%RH |
